Introduction of high lift truck
High lift truck is a new design with larger piston to offer you real 1000kg and 1500kg capacity. This series JL are manual high lift pallet jack and JE are electric high lift truck. It is very suitable as 組合式手動搬運車和升降台。符合人體工程學的溫暖手柄，操作起來非常簡單舒適。此外，前叉支腳上升時，前支撐腿和可調節穩定器會自動延伸到地板上，從而確保最大的穩定性和最佳的製動效果。無論卡車有載還是無載，它都可以保持相同的速度。
This high lift pallet trucks can lift the pallets loading or unloading to the height you need. they can be used in various applications like factory, workshop, warehouse etc.
The manual high lift pallet truck has model: JL5210, JL6810, JL5215, JL6815;
The electric high lift pallet truck has model: JE5210, JE6810, JE5215, JE6815
Manual high lift pallet truck JL series
We have this item in stock in France, if you are located in Europe, we can arrange delivery to you ASAP! This way will save your time and shipping cost.

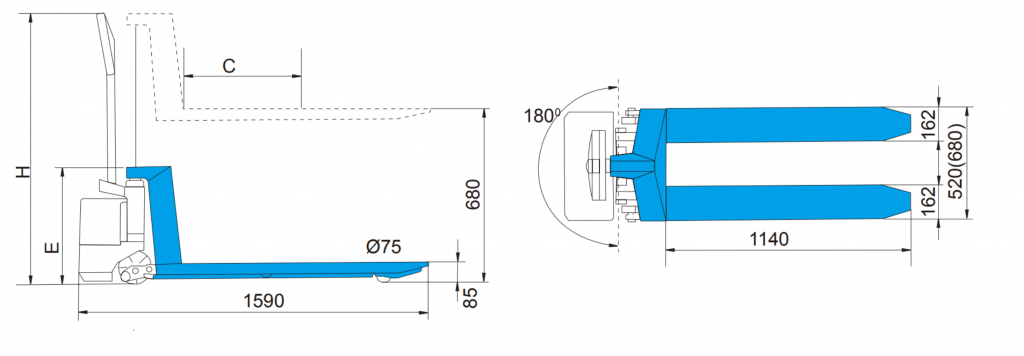

Specifications of manual high lift skid jack truck:
| 我電梯號 | 1410601 | 1410603 | 1410605 | 1410607 | ||
| 模型 | JL5210 | JL6810 | JL5215 | JL6815 | ||
| 容量 | 公斤（磅） | 1000(2200) | 1500(3300) | |||
| 貨叉高度 | 毫米（英寸） | 85-800(3.3-31.5) | ||||
| 貨叉總寬 | 毫米（英寸） | 520(20.5) | 680(26.8) | 520(20.5) | 680(26.8) | |
| 貨叉長度 | 毫米（英寸） | 1140(44.9) | 1140(44) | |||
| 尺寸 | C | 毫米（英寸） | 600(23.6) | 600(23.6) | 560(22) | 560(22) |
| Ë | 530(20.9) | |||||
| H | 1250(49.2) | |||||
| 淨重 | 公斤（磅） | 105(231) | 112(246.4) | 118(259.6) | 125(275) | |
Electric high lift pallet truck JE series
Specifications of electric high lift pallet truck:
| 我電梯號 | 1410602 | 1410604 | 1410606 | 1410608 | ||
| 模型 | JE5210 | JE6810 | JE5215 | JE6815 | ||
| 容量 | 公斤（磅） | 1000(2200) | 1500(3300) | |||
| 貨叉高度 | 毫米（英寸） | 85-800(3.3-31.5) | ||||
| 貨叉總寬 | 毫米（英寸） | 520(20.5) | 680(26.8) | 520(20.5) | 680(26.8) | |
| 貨叉長度 | 毫米（英寸） | 1140(44.9) | 1140(44) | |||
| 尺寸 | C | 毫米（英寸） | 600(23.6) | |||
| Ë | 530(20.9) | |||||
| H | 1250(49.2) | |||||
| 電池 | （Ah / v） | 70/12 | ||||
| 充電器 | （影音） | 8/12 | ||||
| 淨重 | 公斤（磅） | 140(308) | 147(323.4) | 149(327.8) | 157(345.4) | |
- High quality oil cylinder: The integrally sealed hydraulic cylinder can effectively avoid the disadvantages of oil leakage, improve the safety performance of the whole vehicle, lift quickly and improve work efficiency.
- Comfortable handle: Ergonomic design, the outer layer is rubberized and non-slip, the operation feels comfortable, and the drop speed of the hand-pulled pressure relief heavy cargo is controllable, which improves the operation safety.
- Exquisite workmanship: The surface of the car body has been subjected to high temperature baking paint, electrostatic spraying, the surface is smooth and smooth, durable, beautiful and corrosion-resistant.
- Anti-pinch scissors: The scissors are designed with increased spacing and anti-clamping to prevent accidental clamping of other items. Thickened steel enhances the bearing capacity, making it safer and more durable.
Features of high lift trucks:
- 非常容易。泵和輕便使這個單位非常適合作為組合的手動托盤車和升降台
- 通過獨特的液壓閥實現自動下降速度控制，無論卡車有載還是無載，下降速度始終保持不變。這將防止貨物快速下降造成損壞。
- 重型設計：4mm鋼板叉架和更大的提升活塞確保卡車達到額定容量。
- 非常適合作為組合式手動搬運車和升降台
- 前叉達到420mm的高度時，前支撐腿和可調節穩定器會自動延伸到地板上，以確保最大的穩定性和最佳的製動效果。
- 符合EN1757-4。
注意和維護：
不要超載；
是否允許使用地麵條件；
正確裝載貨物；
搬運時穿戴安全鞋和手套；
每次使用前請進行徹底的操作檢查；
用正確的提陞技術組裝機器；
Don't overlook the potential dangers that may exist during operation.
Proper maintenance will extend the life of the truck.
Check the oil, remove air and lubricate during maintenance.
Check the oil level every six months.
The newly injected oil to the rubber container should be 5mm below the liquid level, and the fork must be at the lowest position when adding oil.
When replacing the seal, air may enter the hydraulic system, place the joystick in the LOWER position, and then swing the handle a dozen times.
Lubricate the movable part with motor oil or oil.
Also pay attention to daily inspection and maintenance.
Inspection of the truck can reduce wear as much as possible.
Special attention should be paid to the wheel, axle, handle, fork, lift and lowering control.
Whenever work is completed, the fork should be unloaded and lowered to the lowest position.
